Ask a questionStandalone 4.3" touchscreen lighting controller

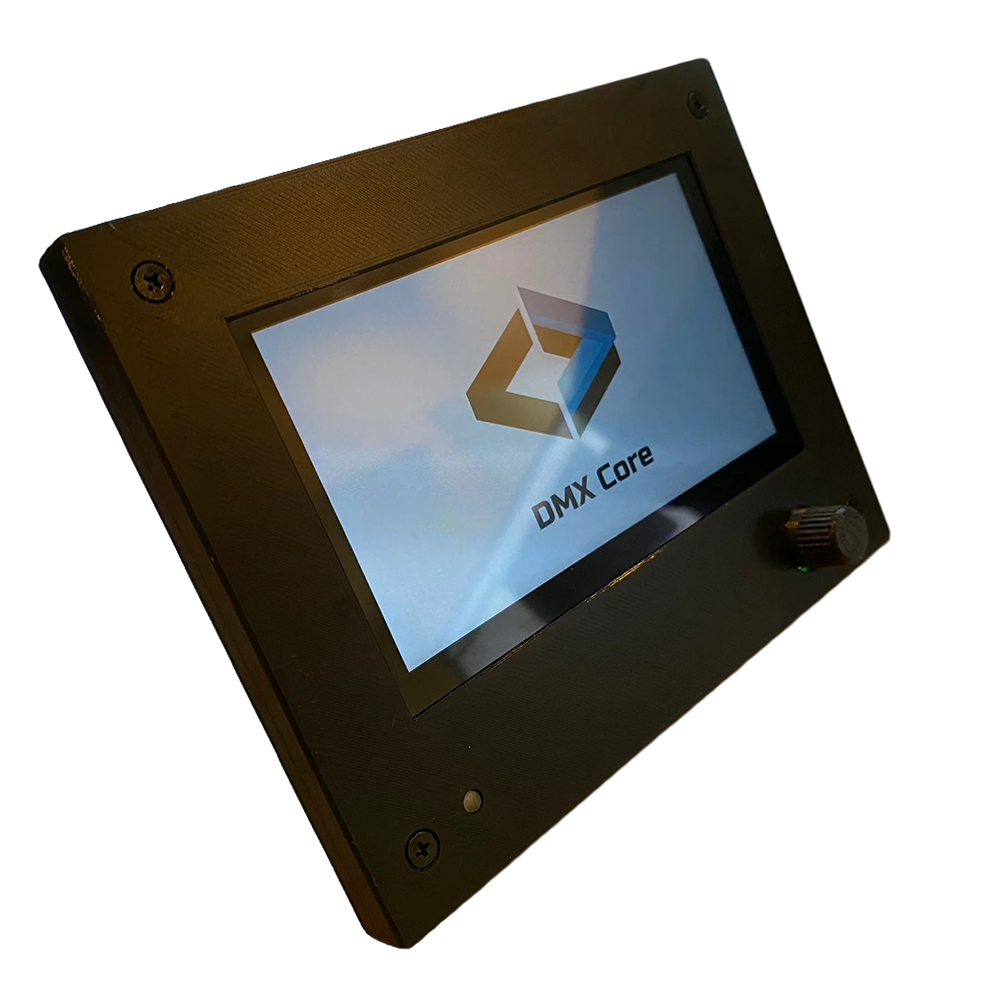

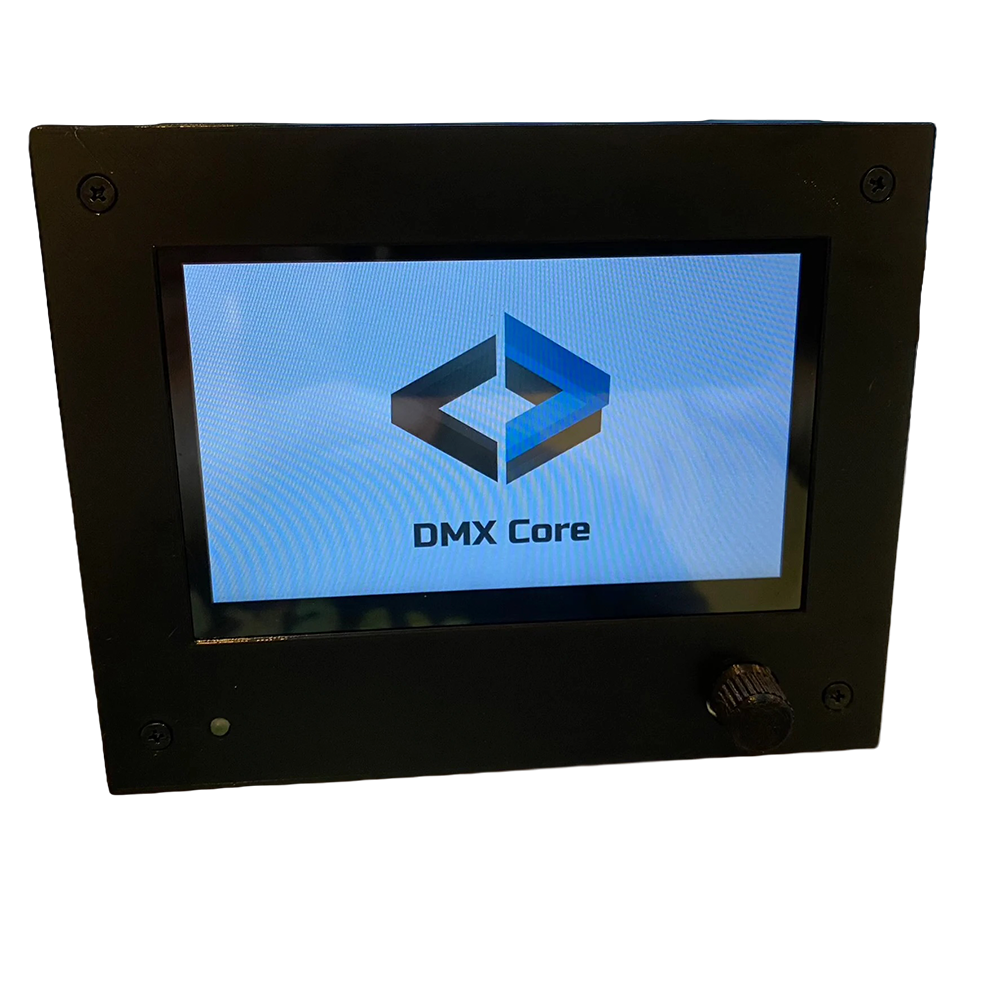

The DMX Core 100 lighting controller in a compact 4.3-inch touchscreen. Powers over Ethernet (or 8–28 VDC) and installs however your project needs — drop it into a desk stand, a 19" rack, a US 2-gang electrical box, or your own custom enclosure. Ideal for permanent installs that want a clean, self-contained controller in place of a rack and a PC — restaurants, houses of worship, retail, and architectural spaces. Comparable to the Enttec S-Play or CueServer, with a touch-friendly interface and full remote control.
What it does
- Record shows from your console or software and store them on the device
- Trigger cues, presets, and timelines from the touchscreen, on a schedule, via the Web API, or from triggers (OSC, HTTP, and more)
- High-quality stream playback up to 800 universes at 40 Hz (600 at 60 Hz) for network streams
- Audio playback synchronised to lighting cues (USB sound card or optional HQ audio board)

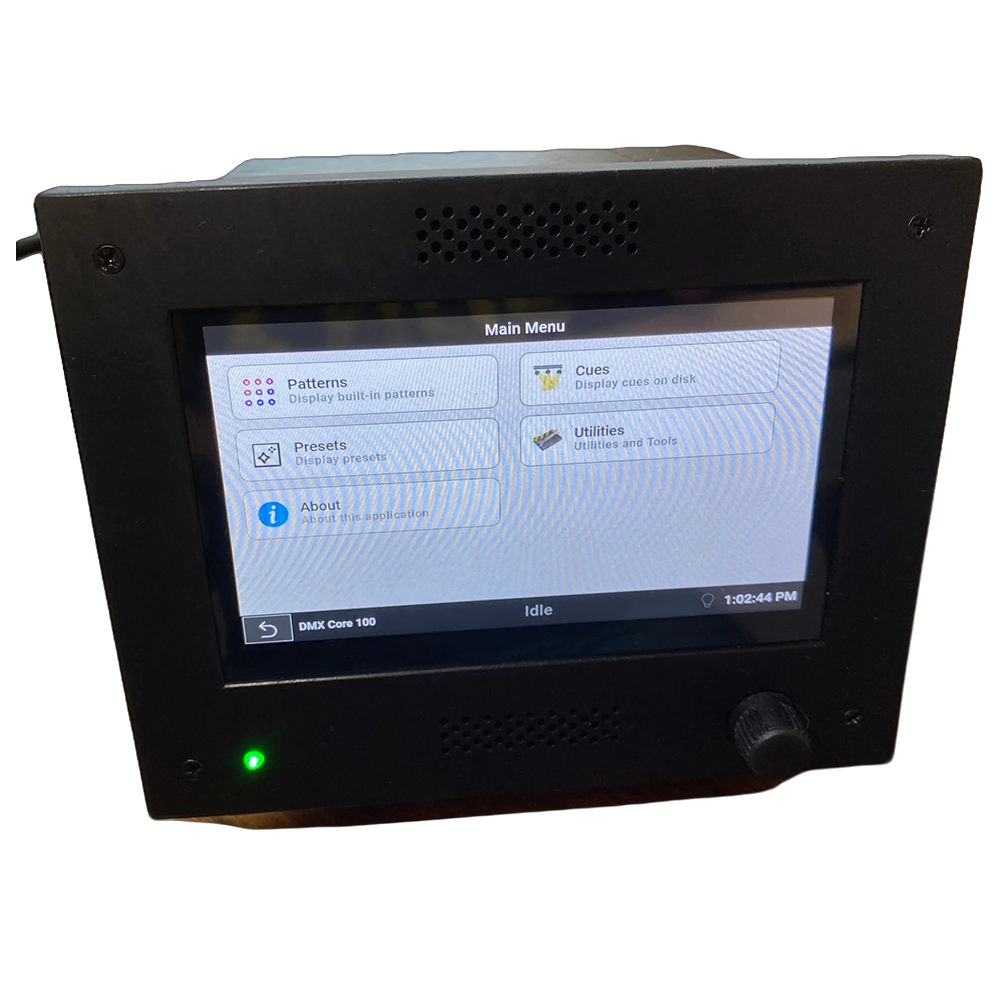

- Fixture control, zones, presets, and built-in effects
Native Advatek integration
DMX Core 100 works hand in hand with Advatek Lighting PixLite® pixel controllers through a deep, native integration for remote management and monitoring. Auto-discover every controller on the network, create Art-Net or sACN outputs in a single click, and watch board temperature, supply voltage, and per-output current live — with firmware and port-config drift detection so an install stays exactly as commissioned. Explore the Advatek integration →
Connectivity & integration
Outputs Art-Net, sACN (E1.31), and KiNet v1/v2, plus DMX-512 via the optional 2-port board and USB DMX (up to 4 universes via Enttec Pro / DMXking). Integrates over HTTP, OSC, UDP, TCP, MQTT, and DMX, with a full Web UI and REST API. customisable menus lock the interface down to exactly what staff need.
Specifications
- 4.3" touchscreen

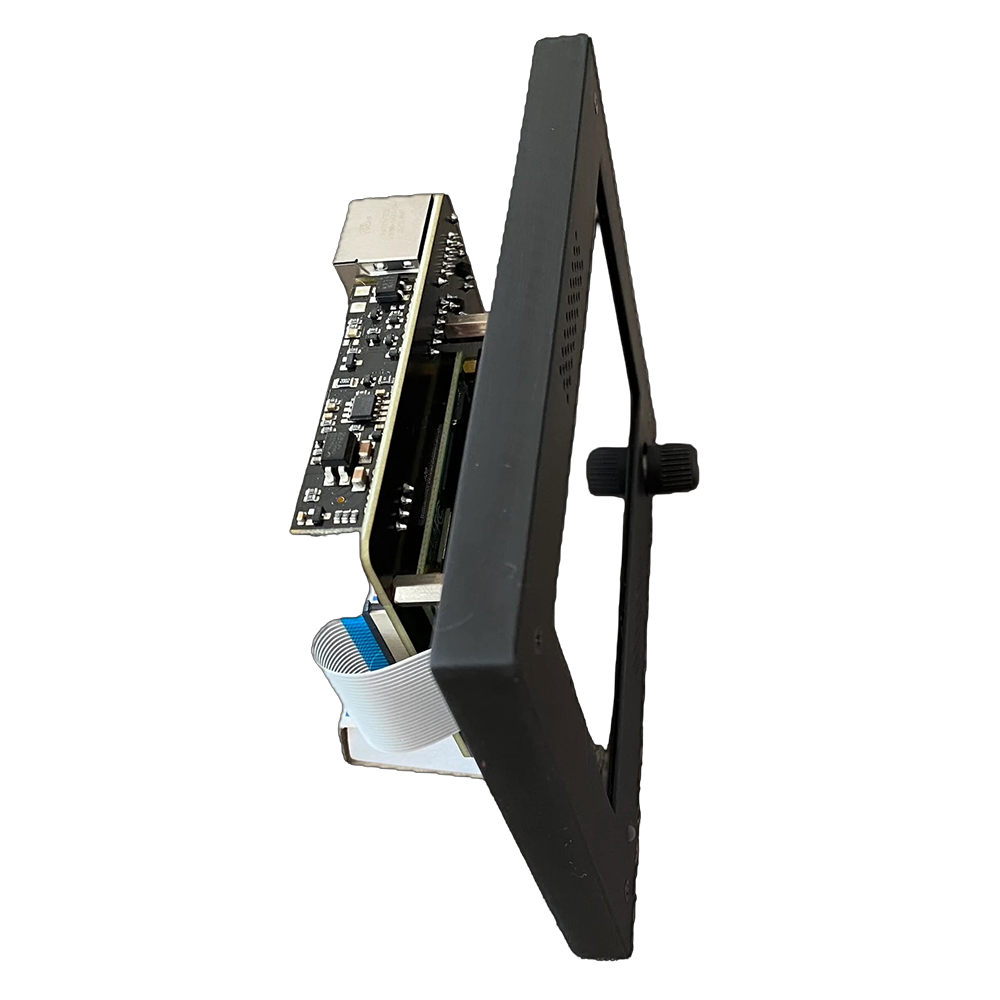

- Flexible mounting: desk stand, 19" rack mount, standard 2-gang electrical box, or custom enclosure (stands and rack mount sold separately)
- Power over Ethernet or 8–28 VDC input
- 1 GbE Ethernet
- MicroSD and USB-A for storage and boot-image loading
- RTC clock with battery backup plus network time sync
- Secure cloud remote access and remote software updates (1 year included)
- Fleet remote management via portal.dmxcore.com
